BPFDoor Part 2 - The Present

BPFDoor Part 2 - The Present

Despite the venerable BPFDoor malware has once again found itself in the media spotlight. Recent variants avoid existing detections, so we will take a look at samples found in significant telecommunications provider breach in April 2025.

💡
Recommended for prior reading: Trend Micro (2025), Sandfly Security (2022), Elastic (2022).

Detection evasion improvements

We will be using two following samples as references

cf2d3d9e0246a3220d7c3cc94257447085911b32e1de0aee9d4af7dd6427597d
3f6f108db37d18519f47c5e4182e5e33cc795564f286ae770aa03372133d15c4

What's changed

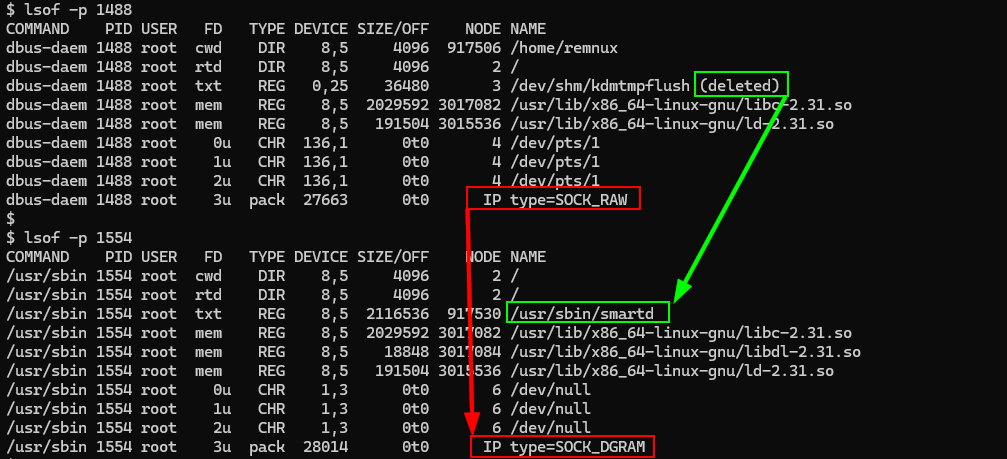

File descriptors for the more recent BPFDoor compared to the prior reported
  • No moreSOCK_RAW appearing. You will only find socket of typeSOCK_UDP in BPFDoor open file descriptors. Despite this, the implant still accepts ICMP, UDP and TCP wakeup packets
  • The random selection of custom process names used for masquerading has been replaced with a fixed process name.
    • Mutex locks file paths are adjusted accordingly
  • Removal of "fileless" feature, no longer writing to /dev/shm and deleting itself from disk
  • Global variables / function names stripped - no more looking for binaries with godpid
  • SSL for transport encryption with embedded certificate
  • Updated BPF filter, now coming at a whopping 229 bytes long

Goodbye SOCK_RAW

A common and useful detection opportunity is to look for unexpected processes with open raw sockets. Doing a lsof | grep SOCK_RAW won't surface BPFDoor anymore. This is how it looks now:

# lsof -p 4073
..
/usr/sbin 4073 root    0u   CHR  136,3      0t0       6 /dev/pts/3
/usr/sbin 4073 root    1u   CHR  136,3      0t0       6 /dev/pts/3
/usr/sbin 4073 root    2u   CHR  136,3      0t0       6 /dev/pts/3
/usr/sbin 4073 root    3u  pack  37048      0t0      IP type=SOCK_DGRAM

Prior, variants would open a raw socket (followed by setsockopt to install its BPF filter):

socket(PF_PACKET, SOCK_RAW, htons(ETH_P_IP))
..
setsockopt(sock, SOL_SOCKET, SO_ATTACH_FILTER, &filter, sizeof(filter))

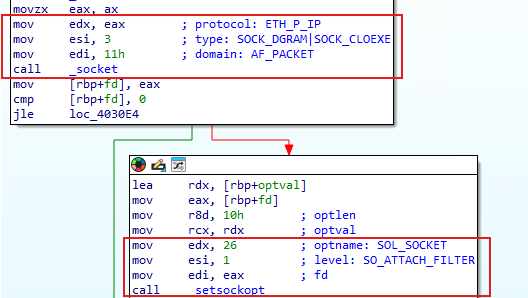

Now we see that SOCK_RAW has been replaced with SOCK_DGRAM|SOCK_CLOEXEC

In other words we now have:
socket(AF_PACKET, SOCK_DGRAM|SOCK_CLOEXEC, htons(ETH_P_IP))

One would assume on a surface glance that AF_PACKET with SOCK_DGRAM would only receive UDP packets (SOCK_DGRAM), but this is not actually the case.

packet(7) states:

"When protocol is set to htons(ETH_P_IP), then all IPv4 packets are received. All incoming packets of that protocol type will be passed to the packet socket before they are passed to the protocols implemented in the kernel."

Hence, as per the description, ETH_P_IP will take precedence, making the socket 'applicable' for IP packets of any protocol (TCP, UDP, ICMP). What is not apparent is that kernel will reports the socket as SOCK_DGRAM which is misleading unless the nuance is understood.

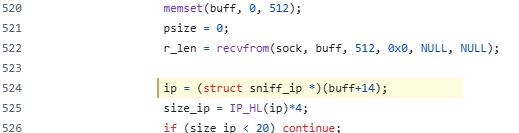

The data received is slightly different as well: With SOCK_RAW the kernel will pass the whole packet, including the link layer, while AF_PACKET strips this out and will everything from the IP header onwards. Hence we see in the original source with SOCK_RAW discards the 14 byte ethernet header:

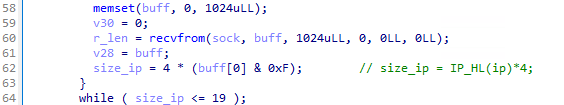

While the newer version using SOCK_DGRAM assumes the first byte to be the start of the IP header:

This very minor modification is a particularly improvement to it's stealth

Socket detection opportunities

ss -0pb will still surface the BPF filter.

# ss -0pb
..
 users:(("/usr/sbin/smart",pid=4535,fd=3))
        bpf filter (229):  0x30 0 0 0, 0x54 0 0 240 ..

Removing the b flag (and trimming out systemd related false positives), the socket is listed as p_dgr:

# ss -0p
p_dgr .... users:(("/usr/sbin/smart",pid=4812,fd=3))

If monitoring system calls, there are some opportunities. For example, auditd rules for socket with AF_PACKET. Expect false positives.

auditctl -a exit,always -F arch=b64 -S socket -F a0=17

and setsockopt with SO_ATTACH_FILTER:

auditctl -a exit,always -F arch=b64 -S setsockopt -F a2=26

No more deleted in /dev/shm

As an evasion technique, BPFDoor would copy itself into /dev/shm, execute itself then delete itself from disk as an anti-forensic technique.

The kernel marking a processes' executable inode as (deleted) within a temporary file system such as /dev/shm proclaims loudly "this deserves a closer look".

Now BPFDoor no longer touches /dev/shm nor does it deletes itself. It behaves more like a normal process with the exception of its process name masquerading with the prctl system call and overwriting the envp on the stack.

Process Names and Mutex Lock

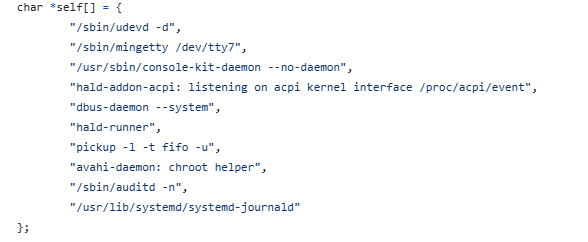

Prior, the malware would randomly select a process name from a fixed list of common process names and a somewhat constant file path for its mutex lock. Both of these have changed - The masqueraded process name and mutex lock path may vary to better match the target environment. For reference, the original would randomly select from the following list of process names/arguments on initialization:

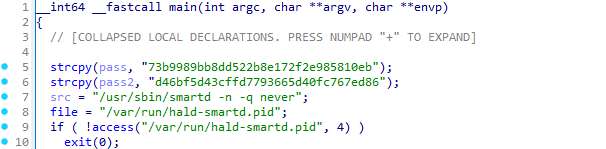

A single process name is now hard coded. For example, the following example disguises itself as smartd, a disk monitoring daemon:

Other new "single process" masqueraded process names include:

  • lldpad -d, /var/run/lldpad.lock
  • dbus-daemon --system, /var/run/system.pid
  • /usr/libexec/hald-addon-volume, /var/run/hald-addon.pid
  • /usr/sbin/console-kit, /var/run/console-kit.pid

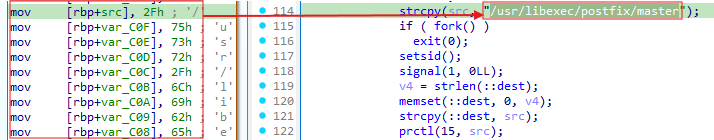

Notably, when a magic packet is received, the forked process name remains /usr/libexec/postfix/master and the familiar qmgr.

💡
As with all BPFDoor samples, running 'strings' or similar will miss many strings. For example, in the disassembly, the md5password hashes above are littered with mov instructions. This is due to the use of the strings being defined as an array, or as a "stack string".

bpfdoor-dump.py can be used to extract obfuscated hashes and other strings from samples. Alternatively, check out this from elastic.co.

SSL Encryption

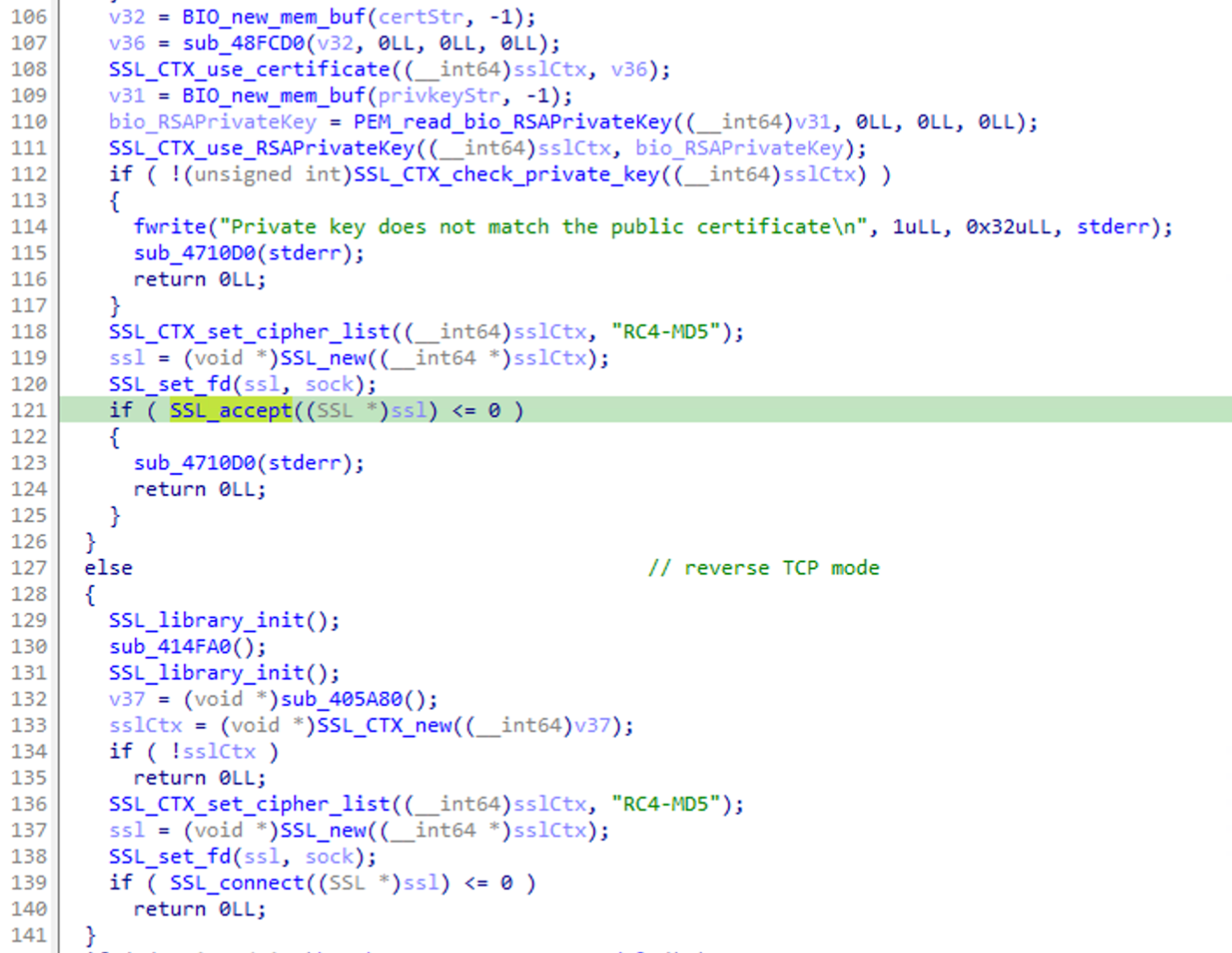

VanillaRC4 has been deprecated in the getshell function, replaced SSL using RC4-MD5 for both bind mode (listening server) or the reverse connection mode (client).

function names, vars have been renamed during decomp.

The hardcoded certificate and private key (used in bind / server mode, with SSL_accept is extractable with strings. In all samples analyzed, 3 unique self-signed certificates were identified.

-----BEGIN CERTIFICATE-----
MIIB+zCCAWQCCQCtA0agZ+qO5jANBgkqhkiG9w0BAQsFADBCMQswCQYDVQQGEwJY
WDEVMBMGA1UEBwwMRGVmYXVsdCBDaXR5MRwwGgYDVQQKDBNEZWZhdWx0IENvbXBh
bnkgTHRkMB4XDTIxMTEyMzAyMTc0NloXDTMxMTEyMTAyMTc0NlowQjELMAkGA1UE
BhMCWFgxFTATBgNVBAcMDERlZmF1bHQgQ2l0eTEcMBoGA1UECgwTRGVmYXVsdCBD
b21wYW55IEx0ZDCBnzANBgkqhkiG9w0BAQEFAAOBjQAwgYkCgYEAx1JvO+nqr24g
wc8at6x1NtZt7DoDi1/Ge/F70zz4gbxX/OxhOxXKexYrphsHXBzYVEWOyof9Vnok
ST7GKdRiRg6OS90WfdWFoVN2EdxwBN+BdozmwRBG1DAdqAhbeUcUFeZO0Fbuo7fr
FvTfsC31khj6ioKJl0d4kfo2zLk6WhcCAwEAATANBgkqhkiG9w0BAQsFAAOBgQA1
iC/5g+eN3Hq/627tMbLhipNUtC0OEdtpq20mbUIMXTRYh4kZPAah1LZqx2h72BV1
i8pYJo34kZ/3HyV6UJtBf/jJv1fprEWvo2Lj8YrCpagXh82i7353GUeiKFVr0gx+
4ruTus1m0bX1NZN6XRAbgzar7bfki0HHjWxJB8NRLQ==
-----END CERTIFICATE-----
openssl x509 --in cert.pem -noout -dates -fingerprint
notBefore=Nov 23 02:17:46 2021 GMT
notAfter=Nov 21 02:17:46 2031 GMT
SHA1 Fingerprint=85:CA:7E:BB:F1:1F:53:45:4E:DA:BB:27:DD:DC:59:DB:52:C2:0E:08

This change may explain one reason the newer samples are statically compiled, resulting in a much larger file executable file size - with the benefit of avoiding any linking issues with the SSL library.

Password hashes

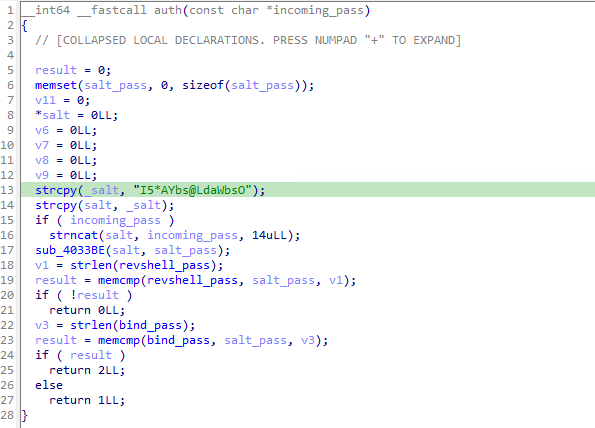

Embedded passwords in older samples have been replaced with salted hashes. Where hashing was used, the same constant salt is present: I5*AYbs@LdaWbsO

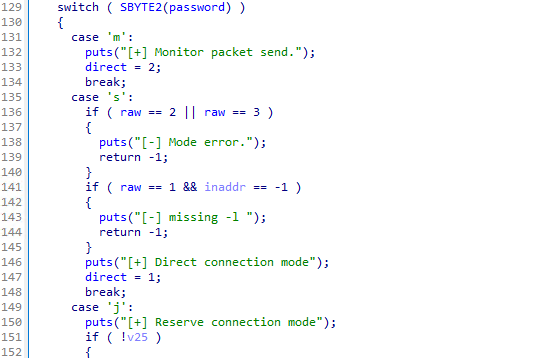

The first character of the password is used as an instruction on which mode to invoke. Passwords must start with either a m, s or j. This means the the search space for cracking the password hashes is reduced by one character which can make a huge difference in the time to brute force the key space, reducing the maximum length from 14 to 13 characters.

6227cb77cb4ab1d066eebf14e825dbc0a0a7f1e9

We can crack these hashes with hashcat, using mode 20 - md5($salt.$pass)

For example:

hashcat -a 3 -m 20 hash:I5*AYbs@LdaWbsO j?1?1?1?1?1?1?1?1?1 -1 ?l?u -i

Here are some hashes taken from samples with their corresponding plain-text password. Cracked hashes that include acronyms which can identify the victim organisation have been omitted.

aa73d4574fd91b9648d73b01ea1920f3:I5*AYbs@LdaWbsO:joinfare
5609e5e3d3e7efd85e219901ab06bb61:I5*AYbs@LdaWbsO:jberemote
215c5b9279d3e462eceb9af3b5028c05:I5*AYbs@LdaWbsO:justgetso
629849fe5277500a777087d78ddc5dde:I5*AYbs@LdaWbsO:jusrbackso
5fb2ce4f90c53071b12e65d52445d33d:I5*AYbs@LdaWbsO:javatelnet
73b9989bb8dd522b8e172f2e985810eb:I5*AYbs@LdaWbsO:justgetdata
05b37b412e1d1bfdc6b8643d3c869b01:I5*AYbs@LdaWbsO:justgetcheck
8528eba01dca94e6b0d7c4c8cc39889f:I5*AYbs@LdaWbsO:justgotowork
4cf71dacf1750e2a9f122fba74b86a5d:I5*AYbs@LdaWbsO:senttome
3de78247e0e1c9ca3c291bc060d9b622:I5*AYbs@LdaWbsO:setdefault
d46bf5d43cffd7793665d40fc767ed86:I5*AYbs@LdaWbsO:sentandconn
3d45acc78e9d6de380b3cbdccf38af0a:I5*AYbs@LdaWbsO:setopenview

bpfdoor-dump.py can be used to extract the hashes and generate the respective hashcat commands.

YARA Rules

Testing against both Elastic.co's set of BPFDoor yara rules from 2022 does identify the newer statically compiled, stripped samples due to the ruleLinux_Trojan_BPFDoor_5 including:

{ D0 48 89 45 F8 48 8B 45 F8 0F B6 40 0C C0 E8 04 0F B6 C0 C1 }

This corresponds to the instructions in the packet_loop function which calculates the offset of the TCP header for extracting the magic bytes in the TCP wakeup packets. But the ruleset does miss quite a few samples. For maximum coverage, use with Florian Roth's ruleset.

signature-base/yara/mal_lnx_implant_may22.yar at 391a990859091dbc4c21d15db335b371090f606e · Neo23x0/signature-base
YARA signature and IOC database for my scanners and tools - Neo23x0/signature-base

For additional coverage on the latest variants, including the early NotBPDDoor , the following YARA rules can be used:

rule bpfdoor_cert_variant
{
   meta:
      description = "Detects BPFDoor SSL versions"
      reference = ""
      date = "2025-04-31"
      hash1 = "3f6f108db37d18519f47c5e4182e5e33cc795564f286ae770aa03372133d15c4"
      hash2 = "724bd9163641666e035cef81701856fc9ff2dada2509d55dec14588fd1b5e801"
      hash3 = "7804f1dfb5d80a80830829c06ae65b410073748038f965f688dbd84d02eb0008"
      hash4 = "28bfb3f2067c77b83898ef4e41c9fc573e6aaa8581da9b59bddb782205a0b091"
      hash5 = "29564c19a15b06dd5be2a73d7543288f5b4e9e6668bbd5e48d3093fb6ddf1fdb"
      author = "@haxrob"
   strings:
      $s1 = "ttcompat" fullword ascii
      $s2 = "Private key does not match the public certificate" fullword ascii
      $s3 = "HISTFILE=/dev/null" fullword ascii
   condition:
      uint16(0) == 0x457f and (all of them)
}

rule notbpfdoor
{
   meta:
      description = "Detects early (2015/2016) variant"
      reference = ""
      date = "2025-04-31"
      hash1 = "ebffd115918f6d181da6d8f5592dffb3e4f08cd4e93dcf7b7f1a2397af0580d9"
      hash2 = "b2d3c212e71ddbaf015d8793d30317e764131c9beda7971901620d90e6887b30"
      author = "@haxrob"
   strings:
      $s1 = "ttcompat" fullword ascii
      $s2 = "auto install failed, plz manual install it!" fullword ascii
      $s3 = "unset LC_TIME" fullword ascii
   condition:
      uint16(0) == 0x457f and (all of them)
}
